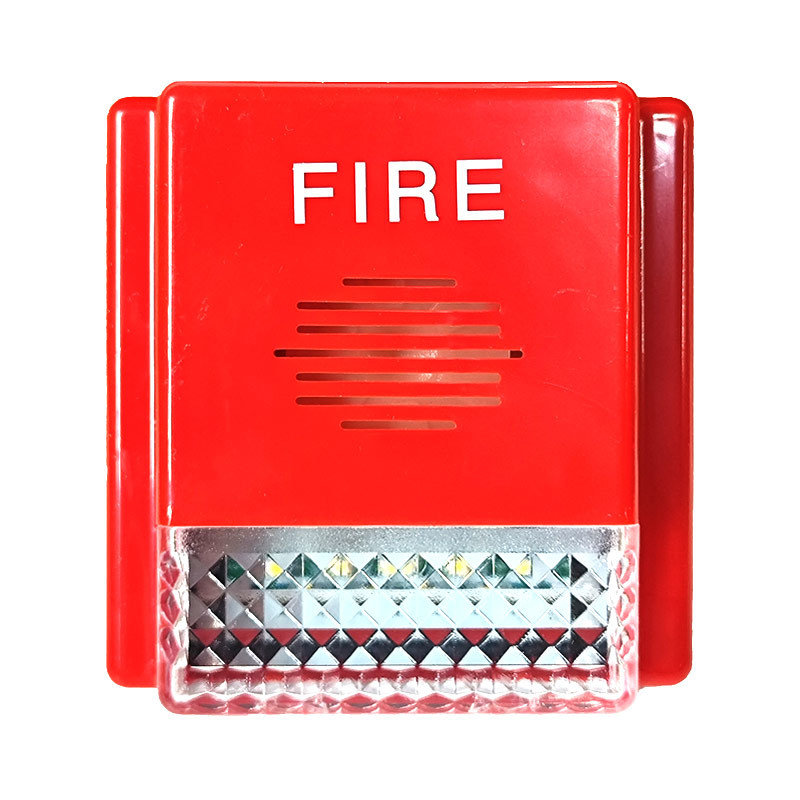

CA2011 Addressable Sounder Strobe Audible And Visual Signal For Fire Alarm System
Introduction
An addressable sounder strobe is a type of fire alarm notification appliance that combines both audible and visual signaling capabilities in a single, addressable device.
The key features and functions of an addressable sounder strobe include:
Audible Alarm:
The sounder component of the device is responsible for generating
the audible alarm signal, typically in the form of a tone or voice
message.
The sounder can be configured to produce different tones, volumes,
and patterns to convey specific information or instructions to
building occupants during an emergency.
Visual Alarm:
The strobe component of the device provides the visual alarm
signal, typically in the form of a flashing light.
The strobe light helps alert and notify building occupants,
especially those who may be hard of hearing or in noisy
environments.
Addressability:
Each addressable sounder strobe has a unique digital address
recognized by the fire alarm control panel.
This addressability allows the control panel to individually
control and monitor the status of each sounder strobe in the
system.
Synchronized Operation:
Addressable sounder strobes can be synchronized to ensure that all
the visual and audible alarms activate simultaneously, providing a
coordinated and effective emergency notification.
Supervised Monitoring:
The addressable sounder strobe is continuously monitored by the
fire alarm control panel for proper operation and fault conditions,
such as open circuits or short circuits.
This supervisory monitoring helps ensure the reliability and
integrity of the fire alarm notification devices.
The use of addressable sounder strobes in a fire alarm system
offers several benefits, including improved occupant notification,
more precise control and monitoring of alarm devices, and enhanced
integration with other building systems. This type of addressable
notification appliance is a common and essential component in
modern, sophisticated fire alarm systems.
| Product name | Sounder Strobe | Type | Addressable |
| Loop Bus wired | 2-wire Non-polarized | Monitor Current | ≤300uA |
| Alarm Currrent | ≤40mA | Dimension | Φ85*46 mm |
| Work voltage | DC17V～DC33V | Operating Environment | Temperature -10°C~+50°C Humidity ≤95%. |
| Weight | Weight:102g(with base) | Certification | CE |
Connection between Sounder Strobe
Connection Diagram of Fire Alarm System
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
|
|
