| Brand Name : | XHA |
| Model Number : | CA100 |
| Certification : | CE |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 500pcs/month |
| Delivery Time : | 7 Working days |

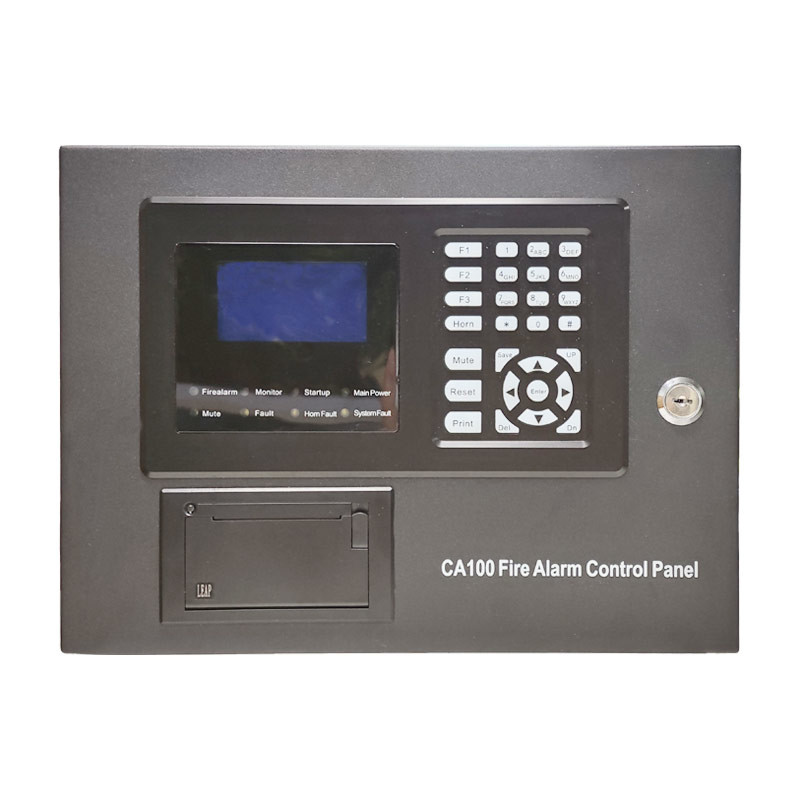

Addressable Fire Alarm System Fire Detection For Commercial And Industrial Facilities
Introduction
An addressable fire alarm system is a type of fire detection and alarm system that uses addressable devices, such as smoke detectors, heat detectors, and manual pull stations, to communicate their status and location back to a central control panel. Each addressable device is assigned a unique address or identifier, allowing the control panel to precisely pinpoint the location of a triggered alarm.
| Product Name | Addressable Fire Alarm Control Panel | Capacity | 254points/loop |
| Capacity | Maximum 1 loops | Main power supply | AC220V± 15%, 2.5A, 50HZ. |
| Battery power supply | DC 24V (1 sealed batteries: 1*12V*2.3Ah) | Loop Bus wired | Non-polarity 2 wired. |
| LCD | Small size, easy Installation | Operating Environment | Temperature -10°C~+50°C Humidity ≤95%. |
Main Functions
Addressable Devices: Unlike conventional fire alarm systems that use zone-based detection, addressable systems have individual devices with unique addresses. This allows the control panel to identify the exact location of an alarm or trouble condition.
Central Control Panel: The heart of the system is the addressable
fire alarm control panel. It continuously monitors the status of
all connected devices and can quickly identify the triggering
device during an alarm.
Zoning and Mapping: The control panel can be programmed to
associate addressable devices with specific zones or floor plans.
This provides clear visual indication of alarm locations on the
control panel's display.
Increased Flexibility: Addressable systems offer more flexibility
in system design and expansion. New devices can be easily added or
relocated without rewiring the entire system.
Advanced Diagnostics: The control panel can provide detailed
diagnostic information, such as device status, maintenance
requirements, and wiring faults, to aid in system troubleshooting
and maintenance.
Integrated Systems: Addressable fire alarm systems can be
integrated with other building systems, such as HVAC, access
control, and security, for coordinated emergency response and
control.
Scalability: Addressable systems can accommodate a large number of
devices, making them suitable for small to large-scale commercial,
industrial, and multi-story buildings.
Product Range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide special technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
|
|
