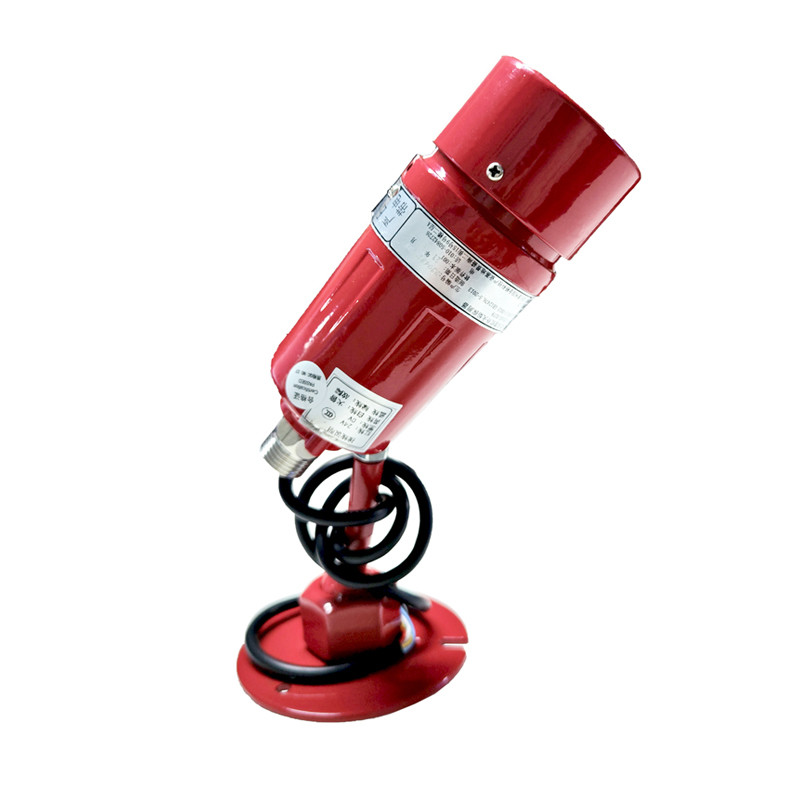

JTGB-UF-YJLH101EX Point Type Dual Band Infrared Flame Detector For Alarm System
Introduction
Infrared (IR) flame detectors are specialized sensors designed to
detect the presence of flames by identifying the unique infrared
light signature produced by combustion. These devices are widely
used in industrial and commercial applications to provide early
warning of potential fire hazards.
It's suitable for the industries of petroleum, petrochemical
refineries, pipelines, chemical plant, coking plant, oil depot and
gas station, CNG, LNG, wine library, spray paint room, drilling
platform, city gas, boiler room, metallurgical industry, fire
engineering, ships, electric power industry and so on easy to
produce liquid or gas fire, smokeless fire and explosion.
Specifications
| Working voltage | 18V-32VDC |
| Interface | 4”(Φ20mm) explosion-proof hose |
| Infrared Flame Detector Detection Angle | 90 degree |
| Level of protection | IP66/IP65 |
| Explosion Proof Level | Ex d lIC T6 Gb. Ex tD A21 IP66/IP67 T80℃ |
| Alarm Status | ≤40mA/24VDC |
| Fire response time | ≤10S |
| Sensitivity | 1m-40m can respond(0.1 m-1.3m) |
| Working environment | humidity ≤95%RH, no condensation |
Instruction
The green work indicator is steady on at the normal situation.
when the fire is found, The red alarm indicator is steady on. At
the same time, the fire alarm relay is closed and the yellow/white
lines are conductive, output the fire alarm signal.
The detector is a non-coding detector, which needs to connect the
interface module when it is connected to the bus system.
Wiring Instruction
Red/black: 24V power line
Yellow/white:Alarm relay ouput, it is closed, normally open.
Blue/green:Fault relay output, it’s open, normally closed.
Maintenance:
In order to keep in good work situation, it need arrange test to
the flame detector every 3 months at least. Once the detector is
damaged or not working properly, need to repaire or replace
accordingly.
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
