Introduction
It utilizes ultraviolet (UV) light sensing technology to identify
the unique UV radiation signature emitted by burning substances,
providing fast and reliable fire detection capabilities.When the
detector senses the presence of flames, it triggers the relay to
signal an alarm condition to the control panel, which can then
initiate appropriate emergency response procedures, such as
activating notification appliances, releasing fire suppression
systems, or notifying emergency services.
SpecificationOperating Voltage Range: 12 to 28 VDC Volts
Standby Current: ≤10 mA @ 24 VDC
Alarm Current ≤30 mA @ 24 VDC
Spectrum: 180~290nm
Detection Angle: 120 degree
Respond time:≤3seconds
Detection Sensitivity: Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol
)
Normal Status: LED blinking in 5 seconds interval
Alarm Status: LED lit steady
InstallationTerminal dispcription
Terminal 1: Relay Output -COM (ZONE+)
Terminal 2: Relay Output - NO/NC (ZONE-)
Terminal 3: DC Power -
Terminal 4: DC Power +

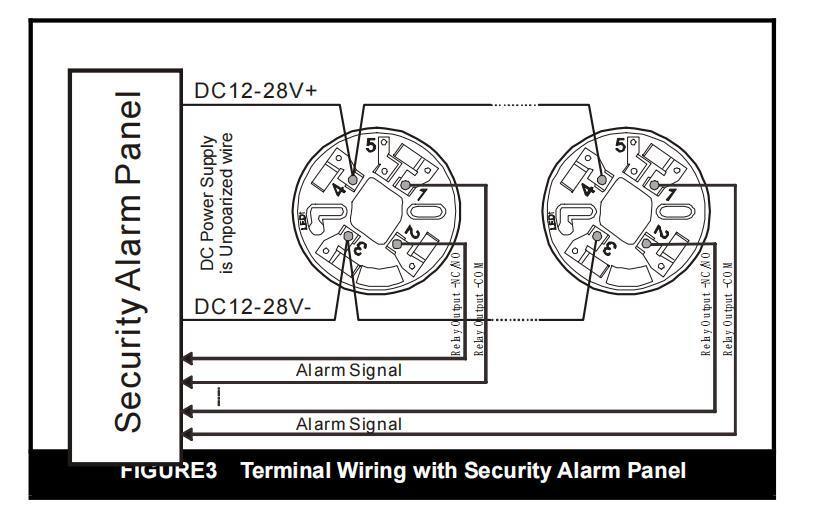

2. The detector can be connected with Security alarm panel as Figure3. Relay output signal can be changed from Normal Close (NC) to Normal Open (NO) by Jump JP1 on the PCB board.
3. The detector can be connected with conventional alarm panel as Figure 4. One 4.7K ohm resistor should be connected as End of Line (EOL) resistor at the last detector.
4. After the installation, power on the detector, use lighter or candle to test the detector within 3 meters.
