High Sensitive Explosion Proof UV Flame Detector For Fire Alarm System
Introduction

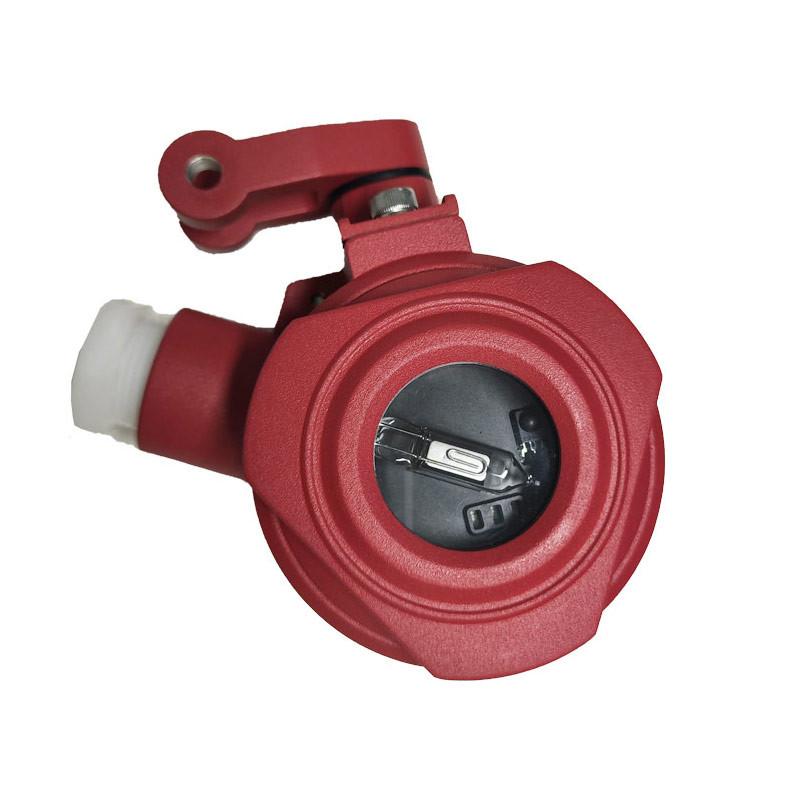

The KF715/UV is a compact, high-performance flame detector that
utilizes ultraviolet (UV) sensing technology.
It is sensitive to the spectral range of 185 to 260nm.
Applications
Petrochemical refineries and processing plants
Oil and gas facilities, including offshore platforms
Fuel storage and distribution centers
Munitions and explosives manufacturing sites
Chemical processing and storage warehouses
Other industrial locations with a high risk of fire and explosions
Integration with Fire Alarm Systems
The KF715/UV flame detector can be seamlessly integrated with fire
alarm control panels to initiate emergency response procedures upon
detecting a fire.
The detector's output signals can be directly interfaced with the
fire alarm system to trigger alarms, activate notification
appliances, and notify emergency personnel.
Specifications
| Working voltage | 24VDC |
| Interface | 1xNPT 3/4 |
| Spectrum Range | 185~260nm |
| UV Flame Detector Detection Angle | 120 degree |
| Level of protection | IP66/IP67 |
| Explosion Proof Level | Ex d lIC T6 Gb. Ex tD A21 IP66/IP67 T80℃ |
| Alarm Status | ≤50mA/24VDC |
| Fire response time | ≤3S |
| Detection range | Level I 25meters(33cm*33cm Ethanol fire) |
| Working environment | humidity ≤95%RH, no condensation |
Terminal discription
Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
