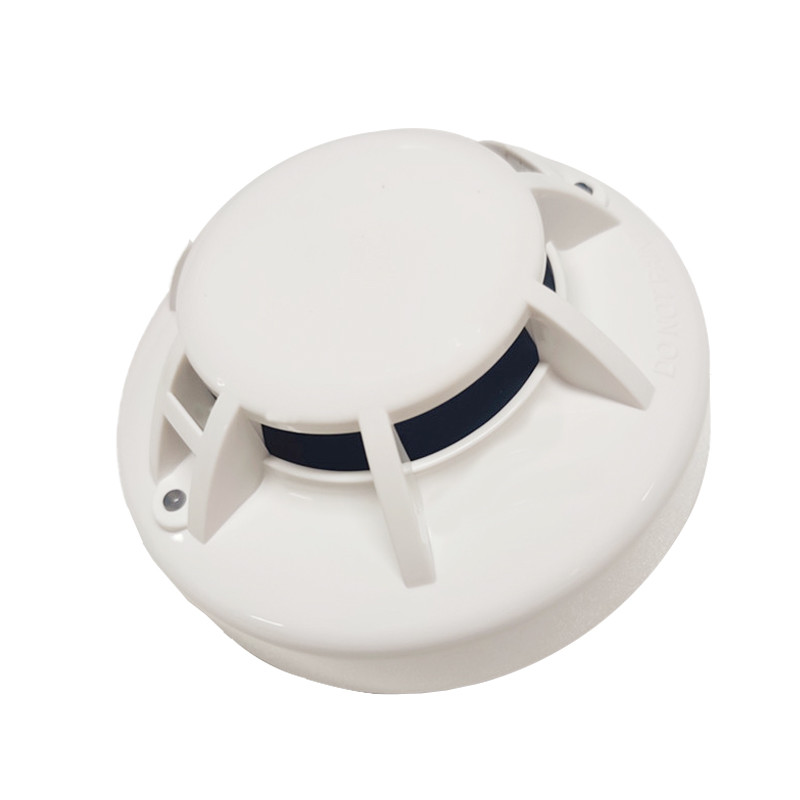

    DC12V DC24V 4 Wire Photoelectronic Smoke Alarm With Relay Output No/Nc Option

    Ask Lasest Price
    Brand Name : XHA
    Model Number : XHA311
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, Western Union
    Delivery Time : 3 Working days
    Supply Ability : 10000/Month
    • Product Details
    • Company Profile

    DC12V DC24V 4 Wire Photoelectronic Smoke Alarm With Relay Output No/Nc Option

    DC12/24V 4 Wire Photoelectronic Smoke Alarm With Relay Output No/Nc Option



    DC12V DC24V 4 Wire Photoelectronic Smoke Alarm With Relay Output No/Nc Option



    Introduction

    4-Wire smoke alarm with relay output is common used for industrial control equipment, power cabinet, charging pile, alarm bell etc fire warning system. This smoke alarm has the characteristics of high sensitivity, stability and reliability, small power consumption and durability. Easy to install.


    Parameters

    Product Namesmoke detector with relay outputRated operational voltageDC9~28V
    Sound pressure level≥80dbStatic current≤200uA
    Alarm current≤45mAWork temperature-10°C~+50°C
    OutputSound&light alarm, relay output/NO NC optionHumidity≤95%.
    Sensitivity0.15~0.3dB/mContact capacity1A/DC24V



    Functions

    1. Detection.
    Press detection button, it can fully check the alarm functions. And the alarm light flashes quickly with a rapid sound.
    2. Alarm.
    In the normal environment, The alarm will flash automatically every 10S and automatically detects the concentration of smoke in the surrounding environment at regular intervals(around 1.6s),If the smoke concentration is close to the alarm value, the alarm starts to perform intelligent calculation, and the alarm indicator light starts to flash. If the calculation result reaches or exceeds the alarm value, the alarm will start the sound-light alarm and start the relay. When the ambient smoke concentration drops below the alarm value, the alarm will automatically return to the normal working state.
    3. Output.
    Passive contact output. Contact capacity 24V/1A, NC or NO two kinds of output.



    Installation

    First drill two mounting holes with a diameter of 5mm on the ceiling 43~ 62.5mm apart. Fix the alarm base with the plug and screw. Then connect the power line and output line.install the alarm to the base in the correct direction. Press down and tighten clockwise, finally turn on the power, it works.




    Product range

    Conventional Fire Alarm System
    Addressable fire alarm system
    Gas Extinguishing control system
    Beam Detector
    4 wire smoke detectors with relay output.
    2 wire Conventional smoke and heat detectors
    Explosion-proof flame detector for fire alarm system
    Standalone smoke detectors and combustable gas detector



    Service

    1. OEM &ODM service.
    2. Provide technical support and after-sale service.
    3. 1 year warranty.
    4. Normally 15 working days lead time.

    5. Welcome sample order.
