Resource Center Gas Fire Extinguishing Control System With And 385mm*134mm*510mm Size

Introduction

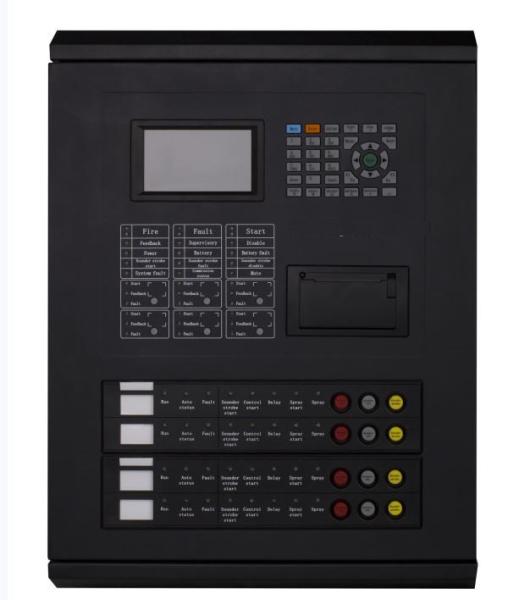

The gas fire-extinguish controller is an addressable gas fire extinguish control panel, it is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread. Simultaneously, it will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off & damper control, as per the cause and effects requirements configured though Command Builder Set-up.


Features

Color menu display
Wall mounted structure,Build-in printer
Connection with field devices through loop control
The panel can connected include smoke detector, heat detector, flame detector,MCP, emergency start/abort button, sounder strobe, gas spray indicators.
Max 4 fire protection and 1 fire alarm loop
Max 6 direct control point
Network function.
The system is combination of alarm, linkage and gas fire-extinguishing.


Parameters

Product Name	Addressable gas fire extinguish control panel	Capacity	Maximum 4 protected area
Battery power supply	DC 24V (2 sealed lead-acid batteries: 12V*12Ah);	Main power supply	AC220V± 15%, 50HZ. Max.Current 3A
Dimensions	385mm×134mm×510mm.	Operating Environment	Temperature 0°C~+40°C Humidity ≤95%.
Communication interface	RS485,CAN,USB	LCD	4inch colored LCD, resolution: 480*272

Product Range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector


Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.

We sepecializes in design and manufacture of high quality fire protection solutions for commerical, industrial and domestic applications. we have nearly 20 years experience in the field of fire protection industry.Everlasting desire for innovation drives our company's product development progress.

We are continuously exploring new technologies that help us live in a smart world.

XHA adopts advanced technologies to lauch its smart series including"smart fire protection"."smart home safety".also XHA is certified by ISO9001, ISO14001 and ISO18001.Professional high knowledge in fire alarm detection system,which allowed our factory specialize in OEM/ODM products range of fire alarm systems include:

1. Intelligent addressable fire alarm system.

2. Conventional fire alarm system.

3. Gas extinguishant control system

4. Beam detector and flame detector

5. Smart home detector& Industry Alone stand detectors.

6. Electrical fire monitor system

7. Fire door monitor system

Our corporate philosophy is to provide high quality product,excellent service and reasonable prices.
