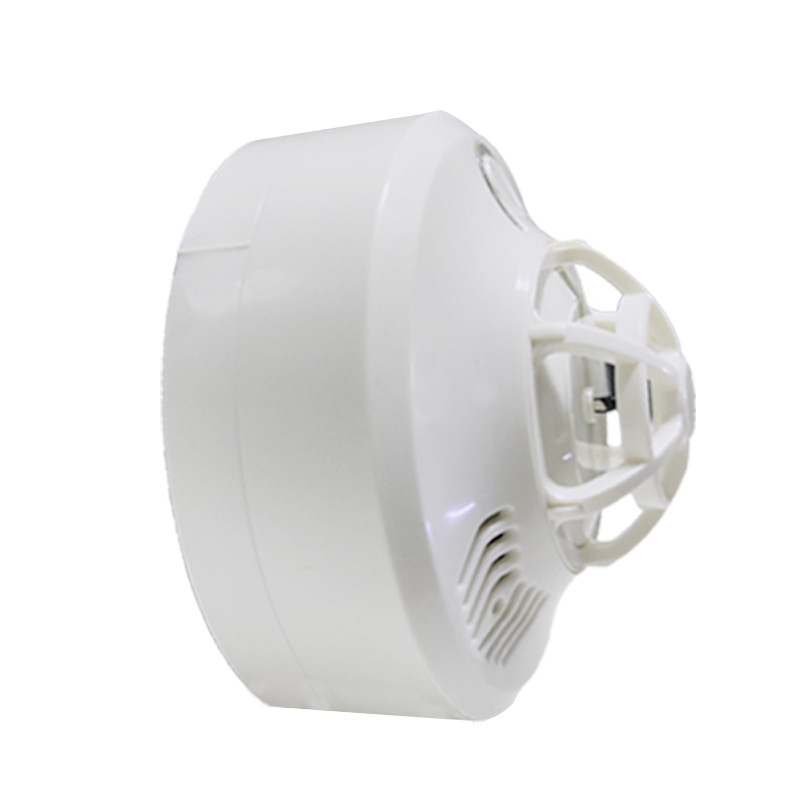

AC220V Power Cabinet Machine Room 4-Wire Heat Detector With Relay Output For Fire Safety System

Introduction
220V AC Power 4-Wire heat alarm with relay output is common used for industrial control equipment, power cubicle, charging pile, alarm bell etc fire warning system. This smoke alarm has the characteristics of high sensitivity, stability and reliability, small power consumption and durability. Easy to install.
Parameters

Product Name	smoke detector with relay output	Rated operational voltage	AC220V
Sound pressure level	≥80db	Static current	≤2mA
Alarm current	≤85mA	Work temperature	-10°C~+50°C, Humidity≤95%.
Output	Sound&light alarm, relay output	Contact Capacity	6A 250VAC

Functions
Self-test: Press the self-test button, the detector sends out the audible and visual alarm signal, and the relay operates. When the self-test button is released, the audible and visual alarm signal is restored and the relay is restored.
High temperature alarm: Under normal monitoring conditions, the detector indicator flashes every 5 seconds. When the temperature reaches or exceeds the alarm threshold, the detector indicator light is on, the buzzer sends the alarm sound signal, and the relay operates.
Alarm recovery: The alarm state will be maintained, press the self-test button for 2 seconds after release, the detector can be restored to the normal monitoring state
Installation
First drill two mounting holes with a diameter of 5mm on the ceiling 52~ 62.5mm apart. Fix the alarm base with the plug and screw. Then connect the power line and output line.install the alarm to the base in the correct direction. Press down and tighten clockwise, finally turn on the power, it works.

Product range
Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.

We sepecializes in design and manufacture of high quality fire protection solutions for commerical, industrial and domestic applications. we have nearly 20 years experience in the field of fire protection industry.Everlasting desire for innovation drives our company's product development progress.

We are continuously exploring new technologies that help us live in a smart world.

XHA adopts advanced technologies to lauch its smart series including"smart fire protection"."smart home safety".also XHA is certified by ISO9001, ISO14001 and ISO18001.Professional high knowledge in fire alarm detection system,which allowed our factory specialize in OEM/ODM products range of fire alarm systems include:

1. Intelligent addressable fire alarm system.

2. Conventional fire alarm system.

3. Gas extinguishant control system

4. Beam detector and flame detector

5. Smart home detector& Industry Alone stand detectors.

6. Electrical fire monitor system

7. Fire door monitor system

Our corporate philosophy is to provide high quality product,excellent service and reasonable prices.
